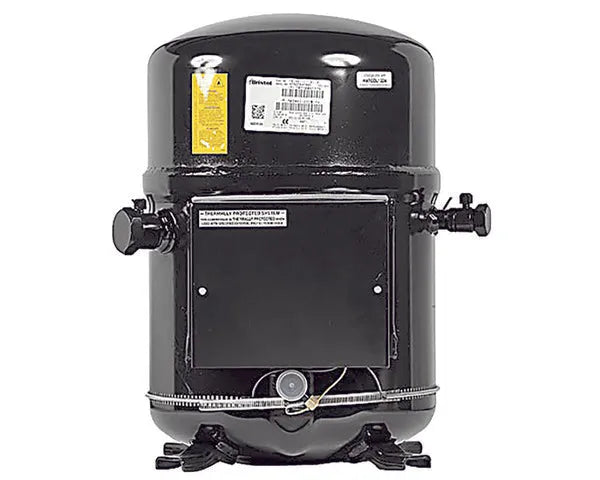

Este compresor hermético H2NG204FRD R22 de la marca Bristol es un componente esencial para sistemas de refrigeración, aire acondicionado, ventilación y bombas de calor. Diseñado para ofrecer un rendimiento óptimo y una fiabilidad duradera en entornos profesionales.
Características Técnicas:
Power supply: 220/230 V | 50/60 Hz | 3 ph
Horse power: 18 HP
Stroke volume: 381.00 cm3
Power ari r22: 50.96 kW
Power cooling r22: 33.61 kW
Refrigerant: R22
Suction line connection: 1 3/4"
Drain pipe connection: 1 1/4"
Weight: 112.5 kg
Operating current: 62 A
Starting current rotor blocked: 225 A
Max operating current: 98 A
Oil type: Alkylbenzene 150T
Oil refill: 6151 cc
Resistance t1 t2: 0.384 Ω
Resistance t1 t3: 0.384 Ω
Resistance t2 t3: 0.384 Ω
Speed: 2950 rpm
Product number: 18-H2NG204FRDF
Manufacturer: Bristol
Manufacturer number: H2NG204FRDF
Weight kg: 117.5
Compatibilidad:
Refrigeration, air conditioning, ventilation, and heat pump applications.
