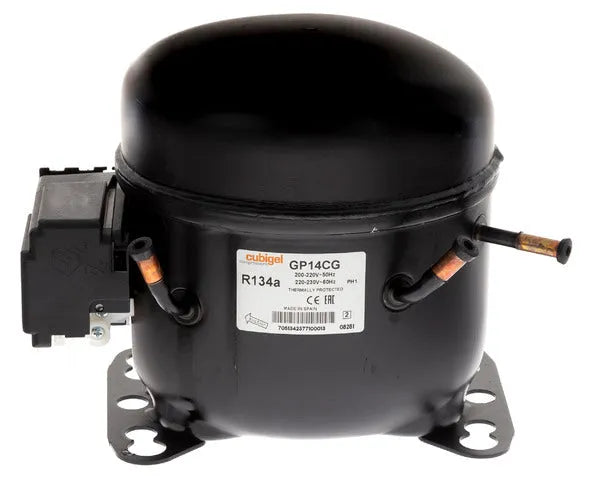

Compresor GP14CG R134A 3/8 CUBIGEL LBP
Compresor GP14CG R134A 3/8 CUBIGEL LBP

Compresor GP14CG R134A 3/8 CUBIGEL LBP

Estalvia 10%
Preu:
147,17€ 163,53€
Estoc:
Disponible

Descripció

El compresor hermético CUBIGEL-HUAYI modelo GP14CG R134A 3/8 LBP está diseñado para aplicaciones de baja presión de retorno (LBP). Utiliza refrigerante R134a y opera con un voltaje de 200-230V a 50/60Hz. Ideal para sistemas de refrigeración que requieren una potencia nominal de 3/8 hp.

  • Nominal Power: 3/8 hp
  • Refrigerant: R134a
  • Displacement: 14,17 cm³
  • Voltage/Frequency: 200-220/220-230V 50/60Hz ~1
  • Net Weight: 10,62 Kg
  • Oil type: ISO VG 32 ESTER
  • Oil charge: 400 cm³
Parámetro Valor
Cooling Capacity (ASHRAE) 310 kcal/h
COP (ASHRAE) 1,18 W/W
EER (ASHRAE) 1,02 kcal/Wh
Input Power (ASHRAE) 305 W
Current (ASHRAE) 2,00 A
Cooling Capacity (CECOMAF) 262 W
COP (CECOMAF) 0,91 W/W
EER (CECOMAF) 0,78 kcal/Wh
Input Power (CECOMAF) 289 W
Current (CECOMAF) 1,95 A
Evaporating Temp. (ASHRAE LBP B) -23,3 °C
Condensing temp. (ASHRAE LBP B) 55,0 °C
Liquid temp. (ASHRAE LBP B) 32,0 °C
Ambient temp. (ASHRAE LBP B) 32,0 °C
Suction temp. (ASHRAE LBP B) 32,0 °C
Voltage/Frequency (ASHRAE LBP B) 230 V 60 Hz
Evaporating temp. (CECOMAF LBP A) -25,0 °C
Condensing temp. (CECOMAF LBP A) 55,0 °C
Liquid temp. (CECOMAF LBP A) 55,0 °C
Ambient temp. (CECOMAF LBP A) 32,0 °C
Suction temp. (CECOMAF LBP A) 32,0 °C
Voltage/Frequency (CECOMAF LBP A) 230 V 60 Hz
Locked Rotor Amps (LRA) 17,20 A
Max. Cont. Current (MCC) 3,30 A
Main W. resist. at 25°C 5,28 Ω
Start W. resist. at 25°C 33,32 Ω
  • Compatible refrigerants: R134a, R1234yf
  • Application: Low Back Pressure (LBP)
  • Evaporating Temperature Range: -35,0 °C to -10,0 °C
  • Cooling: Fan cooled
