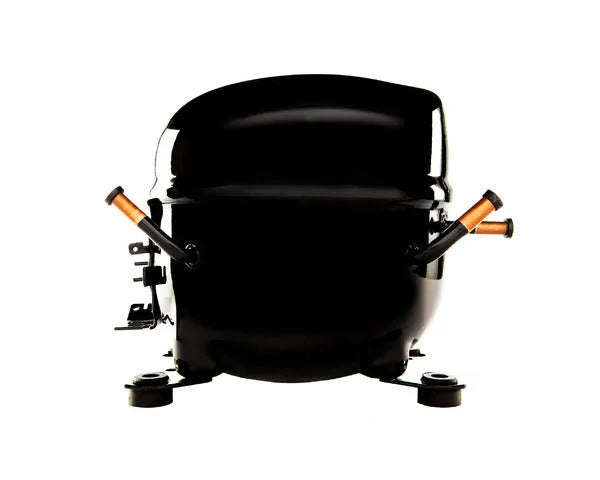

El compresor hermético NEU2170UA de EMBRACO, diseñado para aplicaciones de baja presión de retorno (LBP), utiliza refrigerante R-290, ofreciendo una solución eficiente y robusta para sistemas de refrigeración comercial. Este modelo es un sustituto directo del NEU2168U y opera con un voltaje de 220-240V a 50Hz.
Especificaciones Técnicas:
Model: NEU2170UA
Type: Hermetic Reciprocating
Technology: ON/OFF
Compressor application: LBP (Low Back Pressure)
Expansion device: Capillary Tube or Expansion Valve
Refrigerant: R-290
Power supply: 220-240V 50Hz
Motor type: CSCR
Cooling capacity: 815 W
Efficiency: 1.57 W/W
Starting torque: HST
Start winding resistance: 12.02 Ohm at 25C
Run winding resistance: 5.15 Ohm at 25C
Locked rotor amperage 50hz: 23.5 A
Compatibilidad:
Designed for Low Back Pressure (LBP) applications such as refrigerators, freezers, and display cases.
