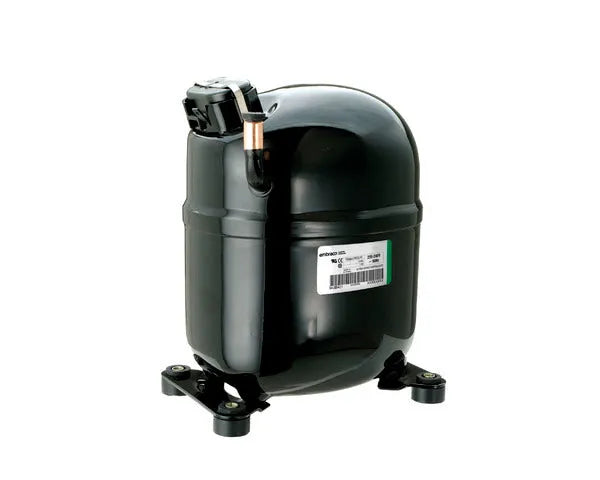

Compresor nj9232gk r404a 1 1/4 mhbp emb | 943NA1104AF

El compresor hermético NJ9232GK de EMBRACO es una solución robusta para aplicaciones de refrigeración. Diseñado para operar con refrigerantes R404A, R452A, este compresor ofrece un rendimiento fiable y eficiente.

• Model: NJ9232GK
• Type: Hermetic Reciprocating
• Technology: ON/OFF
• Compressor application: MBP
• Expansion device: Capillary Tube or Expansion Valve
• Compressor cooling: Fan
• Hp: 1 1/4
• Starting torque: HST
• Plant: SLOVAKIA
• Engineering code: 943NA95
• Power supply: 220-240 V 50 Hz
• Motor type: CSCR
• Cooling capacity: 1905 W
• Refrigerant: R-404A
• Standard conditions: EN12900
• Efficiency: 1.61 W/W
• Start winding resistance: 5.4 Ω at 25°C
• Run winding resistance: 1.75 Ω at 25°C
• Locked rotor amperage 50hz: 43 A
• Displacement: 26.11 cm³
• Oil charge: 750 ml
• Oil type: ESTER
• Oil viscosity: ISO22
• Weight: 21.6 Kg
• Start capacitor: 88-108 μf/330 V
• Run capacitor: 30.0 μf/450 V
• Csr csir box: Yes
• Starting device description: RVA3H3C-108
• Overload protection: T0809/C9
• Base plate: LARGE
• Connector suction: 12.77 mm (VERTICAL, COPPER)
• Connector discharge: 8 mm (SLANTED J, COPPER)
• Connector process: 6.42 mm (VERTICAL, COPPER)

• Refrigerant compatibility: R404A, R452A
